ALTOP Aluminum Columns are precision-engineered from high-strength aluminum alloy, offering exceptional load-bearing capacity and corrosion resistance. With a sleek, modern design and smooth lines, they provide various surface treatment options and color customization. Easy to install and low maintenance, they are widely used in building facades, balcony railings, and interior partitions, perfectly blending safety with aesthetic appeal.
| Aluminum Column – Common Specifications | ||
| Category | Specifications & Options | Notes & Options |
| Material | 6063-T5, 6063-T6 | 6xxx Al-Mg-Si series for high strength, |
| Cross-Section | Square, Rectangular, Round, Custom | Square and rectangular most common; custom profiles available |
| Dimensions | Square: 20x20mm to 150x150mm Rectangular: 40x20mm to 100x50mm Round: Ø20mm to Ø200mm | Custom sizes available based on structural requirements |
| Wall Thickness | 1.0mm - 5.0mm (or thicker) | ≥3.0mm for curtain wall applications; ≥2.5mm for structural uses |
| Standard Length | 3m, 4m, 5.02m, 6.02m | Custom lengths available upon request |
| Surface Finish | Powder coating, Anodizing, PVDF coating, Wood grain | Custom colors and finishes available |
| Mechanical Properties | Yield strength: Varies by alloy and temper | Material selection based on structural calculation requirements |
| Applications | Structural columns, Curtain wall mullions, Decorative wraps, Handrails | Suitable for both interior and exterior applications |
Superior weather resistance and corrosion protection through special surface treatment, suitable for harsh environments.
Modern aesthetic appearance with streamlined design and multiple finish options, blending seamlessly with contemporary architecture.
Precise dimensional tolerance achieved through CNC machining, ensuring accurate installation and perfect alignment.

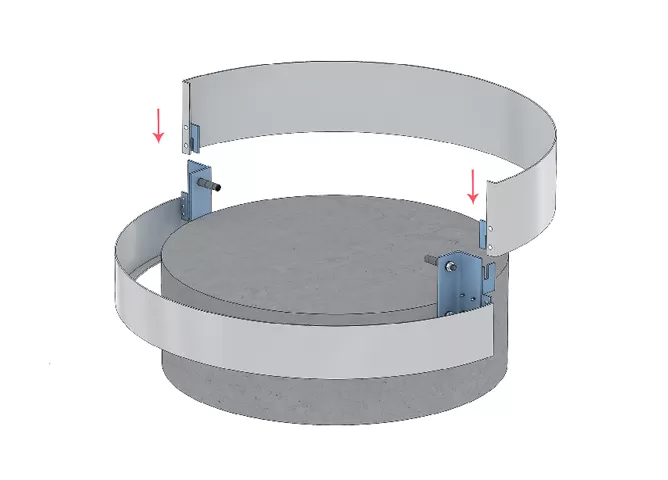

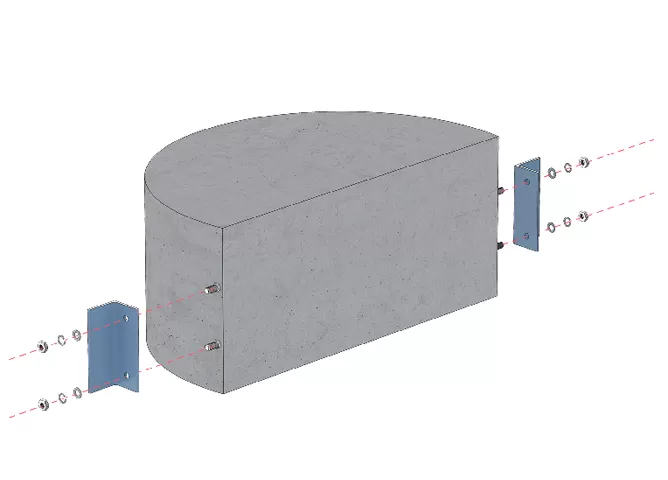

Easy installation system with modular connections significantly reduces on-site construction time and labor costs.
Low maintenance requirements - simple routine cleaning maintains long-lasting appearance.
Environmentally sustainable with 100% recyclable material, meeting green building certification standards.
Fire safety performance meets international standards, effectively enhancing building safety ratings.
Versatile applications for various indoor and outdoor environments, including commercial and residential projects.
Customization services available for size, color and functional requirements.
