ALTOP Aluminum Balustrades are crafted from high-strength aluminum through precision manufacturing, offering exceptional weather resistance and corrosion durability. With a modern minimalist design and smooth lines, they provide various surface treatments like powder coating for long-lasting vibrant finishes. Easy to install and low maintenance, they are the ideal combination of safety and aesthetics for building balconies, staircases, and similar areas.
| Aluminum Balustrade – Common Specifications | ||
| Category | Specifications & Options | Notes / Options |
| Material | 6063-T5, 6063-T6 | Aluminum-magnesium-silicon alloy series, high strength and excellent corrosion resistance |
| Standard Height | Interior platforms/stairs: 900mm-1200mm Bay windows: 800mm-900mm AC guardrails: 600mm-900mm Perimeter walls: 1200mm-2000mm | Must comply with local safety codes and project design requirements |
| Tube Wall Thickness | Handrails/Posts: ≥1.4mm Horizontal rails: ≥1.2mm Vertical balusters: ≥1.0mm | Ensures structural stability and safety |
| Standard Tube Sizes | Handrails: 100×50×1.2mm, 80×40.5×2.0mm, 70×46.9×1.2/1.4mm Posts: 56.5×56.5×1.2mm, 49.5×49.5×1.5mm, 44×37.5×1.5mm Rails: 44×37.5×1.5mm, 30×26.9×1.2mm Balusters: 25×24×1.0mm, 24×20×1.0mm | Various specifications available to meet design needs |
| Post Spacing | Standard balustrades: ≤1200mm Glass balustrades: ≤1000mm | Ensures overall stability of the railing system |
| Baluster Spacing | ≤110mm | Prevents climbing and head entrapment, meets safety standards |
| Surface Finish | Powder coating, Anodizing, Electrophoresis | Custom colors available, excellent weather resistance and UV protection |
| Load Requirement | Platform/Stair balustrades: ≥1000 N/m Bay window/AC guards: ≥500 N/m | Ensures sufficient impact resistance |

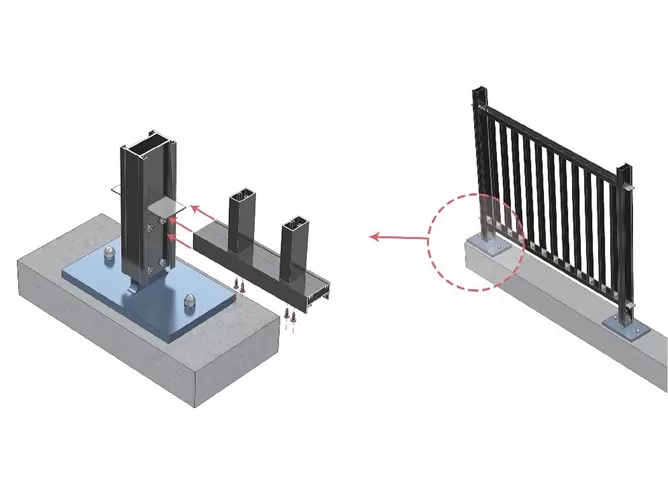

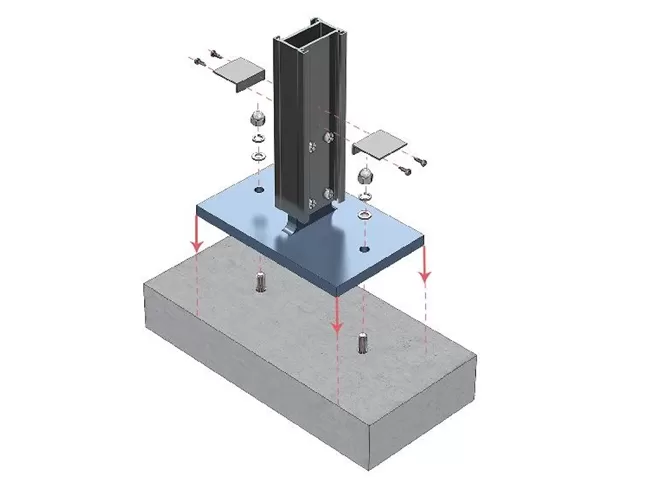

| Installation | Snap-fit connection, Rivet fixing, Expansion anchor fixing, Embedded installation | Welding-free, easy installation |
High-strength aluminum alloy structure ensures durability and excellent load-bearing capacity.
Superior weather resistance and corrosion protection for long-lasting performance in harsh environments.
Sleek lines and minimalist design complement modern architecture while enhancing aesthetic appeal.
Various surface treatments like powder coating and anodizing offer rich, fade-resistant color options

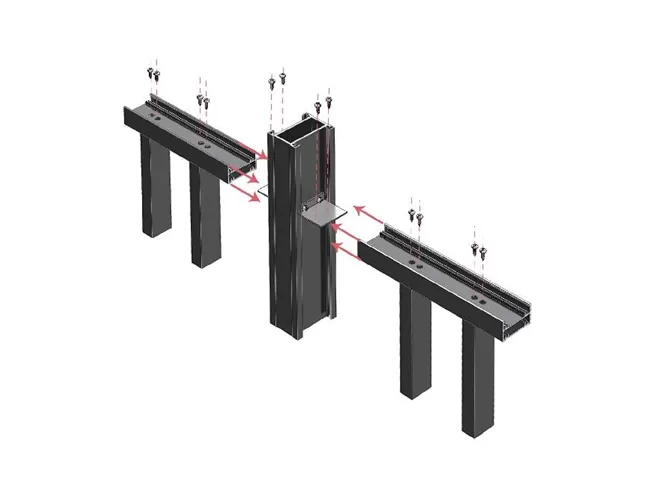

Modular design with easy-connect systems reduces installation time and labor costs significantly.
Low maintenance requirements—only occasional cleaning needed to retain like-new appearance.
Meets safety standards, eco-friendly and recyclable, ideal for balconies, stairs, and more.
